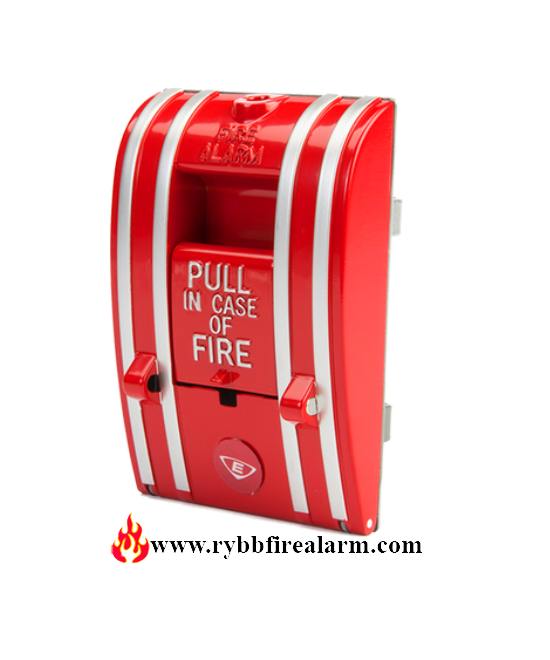

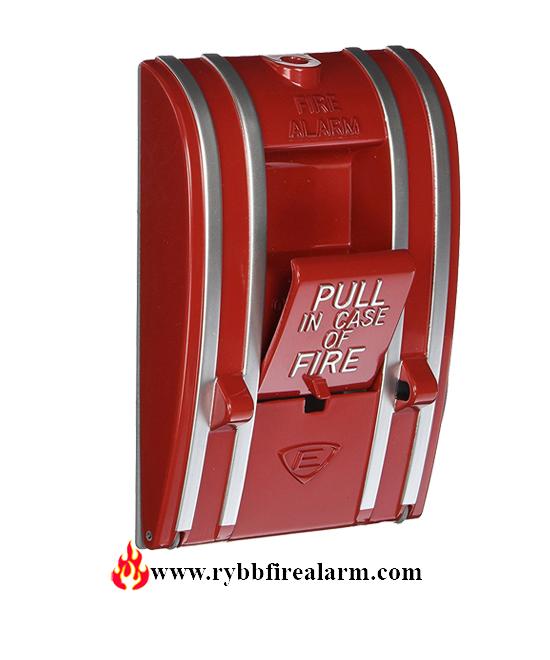

Edwards 270-SPO Fire Alarm Pull Station

Edwards 270-SPO Series non-coded single-action fire alarm stations are sturdy, attractive, and designed for economical installation. Also, the station provides a single action, break glass, initiating the operation. Additionally, available with normally open (N.O.), normally closed (N.C.), or combination N.O./N.C. contacts. The Edwards 270-SPO has screw terminals for field connection. Besides, the 270A Series Manual Stations have 6 inches (150mm) wire leads. All non-coded stations are designed for either flush or surface mounting. Furthermore, for flush mounting, a 4-inch standard North American square box with a single-gang plaster cover should be used. In general, the 270 Series provides a single-action, break-glass initiating station. Available with normally open (N.O.), normally closed (N.C.), or combination N.O./N.C. contacts. Also, the basic 270 Series has screw terminals for field connection. The 270A Series Manual Stations have 6 inches (150mm) wire leads. Features and Specifications Single-action models Pull the lever for simple, positive operation Break glass operation Terminals or wire leads for field connections Surface or flush mounting Red finish Less than 5 lb pull force complies with ADA Solid, die-cast metal construction Operating temperature range: 32°F to 120°F Contact Switches: Double Pole Open circuit Connections: Screw Terminals   Download the Specification sheet in *.pdf format
